Stages
STAGES
Flexible, high-capacity stages built to adapt seamlessly from
ambitious set builds to streamlined modern production workflows

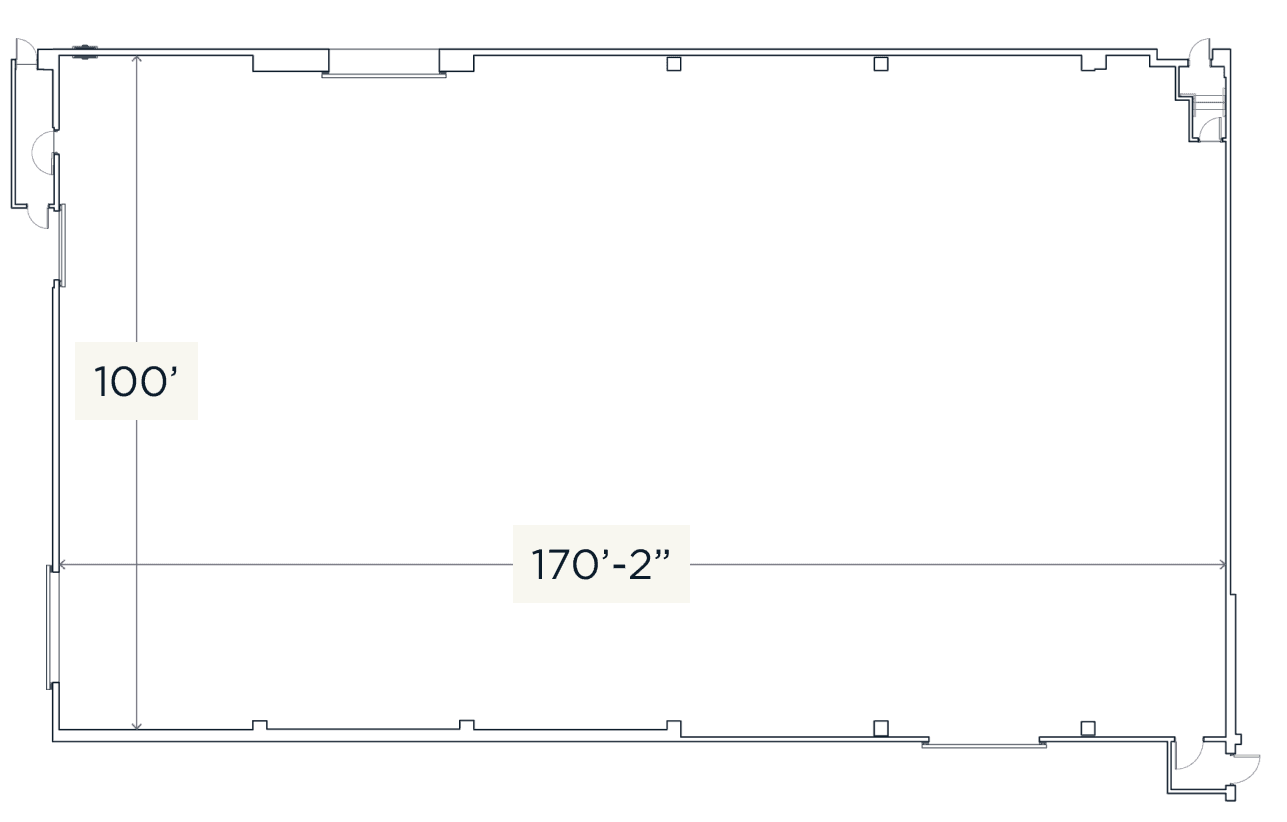

Length x Width
100’ x 170’-2”
Total Square Footage
17,028 SF
Height
40’
Elephant Doors
(3) 16’ x 16’ & (1) 10’ x 16’
Load Capacity
Floor
200 PSF
Ceiling Uniform Load
30 PSF
Ceiling Point Load
2,500 LBS
Pipe Grid Uniform Load
50 PLF
Pipe Grid Point Load
150 LBS
Electrical Design
Power (kVA & Amps)
750 kVA – 2500 A @ 208 V, (3-Phase)
(6) 400 A Company Switches per Stage
HVAC
114 SF/Ton Silent Air
Dampened duct traps to connect flex duct work
Acoustic Rating
NC 25
