ECHELON Studios Hollywood
Stages
STAGES
Flexible, high-capacity stages built to adapt seamlessly from
ambitious set builds to streamlined modern production workflows

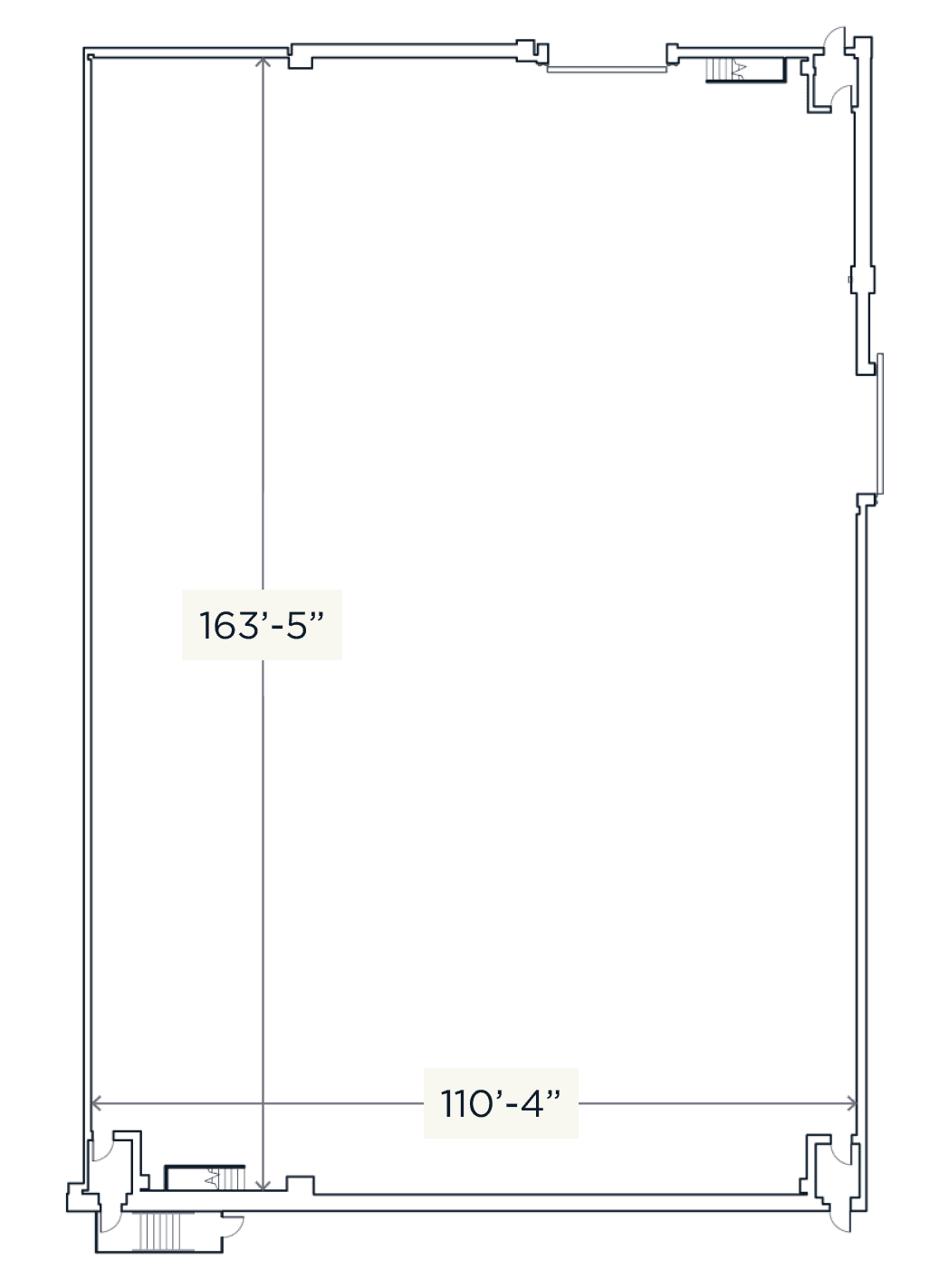

Length x Width
163’-5” x 110’-4”
Total Square Footage
17,848 SF
Height
40'
Elephant Doors
(2) 17’ x 20’
Load Capacity
Floor
500 PSF
Ceiling Live Load
495
Electrical Design
Power (kVA & Amps)
750 kVA @ 120/208 V, (3-Phase)
(7) 400 A Company Switches per Stage
HVAC
120 SF/Ton Silent Air
Acoustic Rating
NC 25
