ECHELON Studios Red Hook
Stages
STAGES
Flexible, high-capacity stages built to adapt seamlessly from ambitious set builds to streamlined modern production workflows

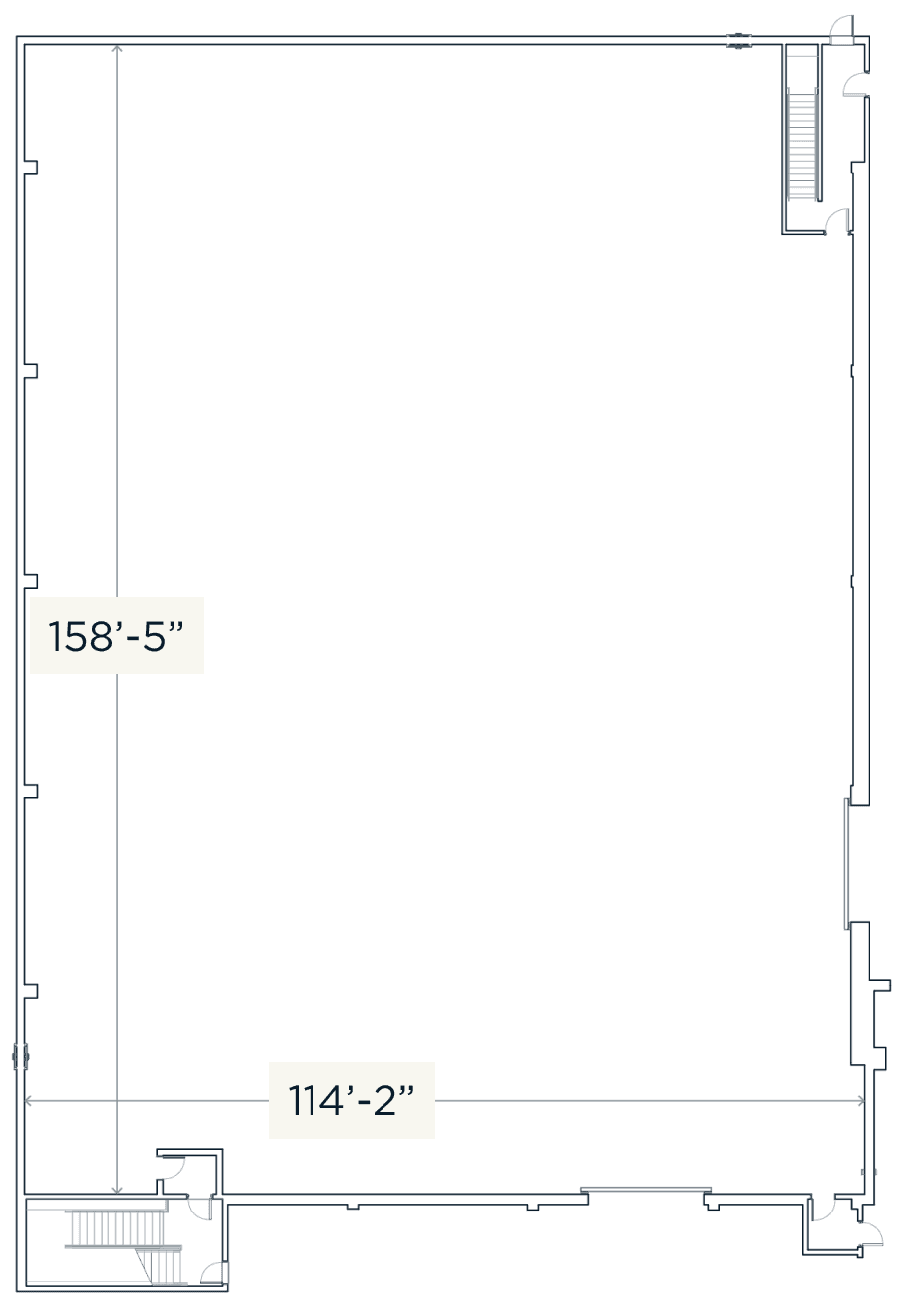

Length x Width
158’-5” x 114’-2”
Total Square Footage
18,772 SF
Height
37’
Elephant Doors
(2) 16’ x 16’
Load Capacity
Floor
200 PSF
Ceiling Uniform Load
30 PSF
Ceiling Point Load
2,500 LBS
Pipe Grid Uniform Load
50 PLF
Pipe Grid Point Load
150 LBS
Electrical Design
Power (kVA & Amps)
750 kVA – 2500 A @ 208 V, (3-Phase)
(6) 400 A Company Switches per Stage
HVAC
125 SF/Ton Silent Air
Dampened duct traps to connect flex duct work
Acoustic Rating
NC 25
